TL1431-Q1 Precision-Programmable Reference

ordering information The TL1431 is a precision programmable reference with specified thermal stability over the automotive temperature range. The output voltage can be set to any value between VI(ref) (approximately 2.5 V) and 36 V with two external resistors (see Figure 16). This device has a typic.
TL1431ĆQ1 PRECISION PROGRAMMABLE REFERENCE D Qualified for Automotive Applications D 0.4% Initial Voltage Tolerance D 0.2-Ω Typical Output Impedance D Fast Turnon . . . 500 ns D Sink Current Capability . . . 1 mA to 100 mA D Low Reference Current (REF) D Adjustable Output Voltage . . . VI(ref) to 36 V SLVS534B JUNE 2004 REVISED APRIL 2008 D PACKAGE (TOP VIEW) CATHODE 1 ANODE 2 ANODE 3 NC 4 8 REF 7 ANODE 6 ANODE 5 NC NC No internal connection ANODE terminals are.

TL1431-Q1 Datasheet (382.34 KB)

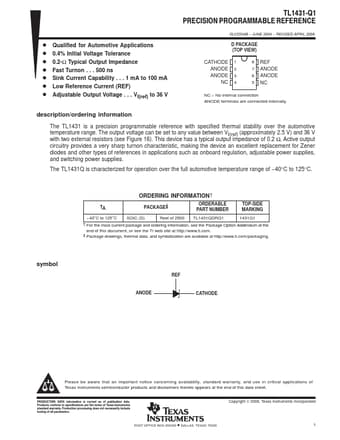

Preview of TL1431-Q1 PDF
TL1431-Q1 Datasheet Preview Page 2 TL1431-Q1 Datasheet Preview Page 3

Datasheet Details

Part number:

TL1431-Q1

Manufacturer:

Texas Instruments ↗

File Size:

382.34 KB

Description:

Precision-programmable reference.
