TL1431-EP

Precision-Programmable Reference

TL1431-EP Features

* 1 0.4% Initial Voltage Tolerance

* 0.2-Ω Typical Output Impedance

* Fast Turnon: 500 ns

* Sink Current Capability: 1 to 100 mA

* Low Reference Current (REF)

* Adjustable Output Voltage: VI(ref) to 36 V

* Supports Defense, Aerospace, and Medica

TL1431-EP General Description

The TL1431-EP device is a precision-programmable reference with specified thermal stability over the military temperature range. The output voltage can be set to any value from VI(ref) (approximately 2.5 V) to 36 V with two external resistors (see Figure 21). This device has a typical output impedan.

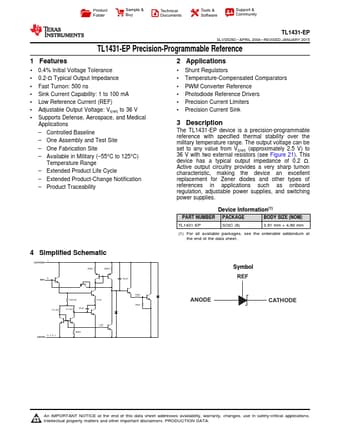

TL1431-EP Datasheet (1.19 MB)

Preview of TL1431-EP PDF

Datasheet Details

Part number:

TL1431-EP

Manufacturer:

Texas Instruments ↗

File Size:

1.19 MB

Description:

Precision-programmable reference.
