TLV1814 Datasheet - Texas Instruments

TLV1814 40V Rail-to-Rail Input Comparators

The TLV181x and TLV182x are a family of 40 Volt single, dual and quad channel comparators with multiple output options. The family offers railto-rail inputs with push-pull or open-drain output options. The family has an excellent speed-to-power combination with a propagation delay of 420 ns with a f.

TLV1814 Features

* Wide 2.4 V to 40 V supply range

* Rail-to-rail input

* Power-On Reset (POR) for known start-up

* Low input offset voltage 500 μV

* 420ns typical propagation delay

* Low quiescent current 5 μA per channel

* Low input bias current 150 fA

TLV1814 Datasheet (5.01 MB)

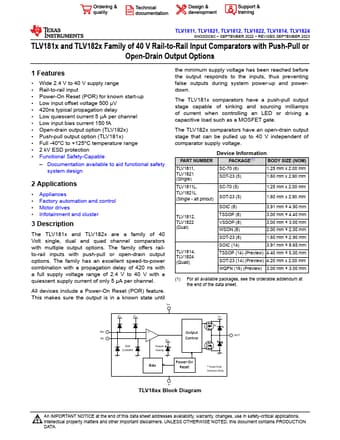

Preview of TLV1814 PDF

Datasheet Details

Part number:

TLV1814

Manufacturer:

Texas Instruments ↗

File Size:

5.01 MB

Description:

40v rail-to-rail input comparators.
