TLV320DAC26 Datasheet - Texas Instruments

TLV320DAC26 - Low Power Stereo Audio DAC

The TLV320DAC26 is a high-performance audio DAC with 16/20/24/32-bit 97-dBA stereo playback.The audio output drivers on the ’DAC26 are highly flexible, having software-programmable low or high-power drive modes to optimize system power dissipation.

The outputs can be configured to supply up to 330 m

TLV320DAC26 Features

* D Low Power High Quality Audio DAC D Stereo Audio DAC Support Rates up to 48 ksps D High Quality 97-dBA Stereo Audio Playback Performance D Low Power: 11-mW Stereo Audio Playback at 48 ksps D On-Chip 325-mW, 8-W Speaker Driver D Stereo Headphone Amplifier With Capless Output Option D Integrated PLL

TLV320DAC26-etcTI.pdf

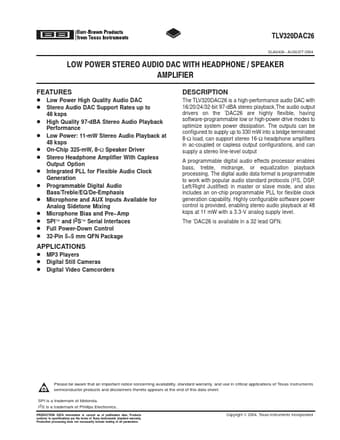

Preview of TLV320DAC26 PDF
TLV320DAC26 Datasheet Preview Page 2 TLV320DAC26 Datasheet Preview Page 3

Datasheet Details

Part number:

TLV320DAC26

Manufacturer:

Texas Instruments ↗

File Size:

1.87 MB

Description:

Low power stereo audio dac.
