TLV320DAC3101

Low Power Stereo Audio DAC

TLV320DAC3101 Features

* 1 Stereo Audio DAC With 95-dB SNR

* Supports 8-kHz to 192-kHz Sample Rates

* Stereo 1.29-W Class-D BTL 8-Ω Speaker Driver With Direct Battery Connection

* 25 Built-In Processing Blocks (PRB_P1

* PRB_P25) Providing Biquad Filters, DRC, and 3D

* Digital

TLV320DAC3101 General Description

The TLV320DAC3101 device is a low-power, highly integrated, high-performance DAC with selectable digital audio processing blocks and 24-bit stereo playback. The device integrates headphone drivers and speaker drivers. The TLV320DAC3101 device has a suite of built-in processing blocks for digital aud.

TLV320DAC3101 Datasheet (3.31 MB)

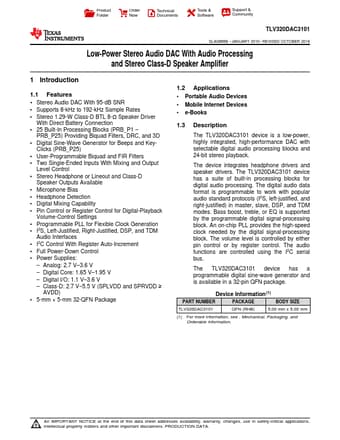

Preview of TLV320DAC3101 PDF

Datasheet Details

Part number:

TLV320DAC3101

Manufacturer:

Texas Instruments ↗

File Size:

3.31 MB

Description:

Low power stereo audio dac.
Product Folder Order Now Technical Documents Tools & Software Support & Community TLV320DAC3101 SLAS666B

* JANUARY 2010

* REVISED.
