TPS2000E

Power-Distribution Switches

TPS2000E Features

* Single power switch family

* Pin-to-pin with existing TI Switch Portfolio

* Rated currents of 1.5 A and 2 A

* Supports 3.3-V and 5-V power rail

* ±20% accurate, fixed, constant current limit

* Fast overcurrent response: 2 µs

* Deglitched faul

TPS2000E General Description

The TPS20xxE power-distribution switch family is intended for applications, such as USB, where heavy capacitive loads and short circuits are likely to be encountered. This family offers fixed current-limit thresholds for applications requiring 1.5-A or 2-A loading, with options between high or low .

TPS2000E Datasheet (1.85 MB)

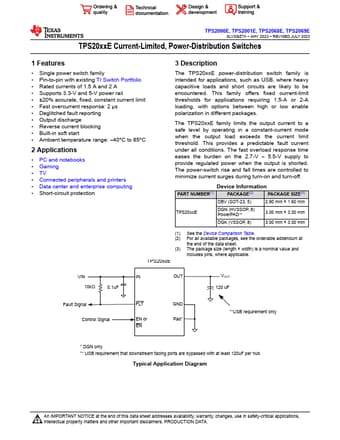

Preview of TPS2000E PDF

Datasheet Details

Part number:

TPS2000E

Manufacturer:

Texas Instruments ↗

File Size:

1.85 MB

Description:

Power-distribution switches.
TPS2000E, TPS2001E, TPS2068E, TPS2069E SLVSGZ7A

* MAY 2023

* REVISED JULY 2023 TPS20xxE Current-Limited, Power-Distribution Switches .
