TPS2041 Datasheet - Texas Instruments

TPS2041 POWER-DISTRIBUTION SWITCHES

The TPS2041 and TPS2051 power distribution switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. The TPS2041 and the TPS2051 are 135-mΩ N-channel MOSFET high-side power switches. Each switch is controlled by a logic enable compatible wit.
TPS2041, TPS2051 POWER-DISTRIBUTION SWITCHES D 135-mΩ -Maximum (5-V Input) High-Side MOSFET Switch D 500 mA Continuous Current D Short-Circuit and Thermal Protection With Overcurrent Logic Output D Operating Range . . . 2.7 V to 5.5 V D Logic-Level Enable Input D 2.5-ms Typical Rise Time D Undervoltage Lockout D 10 µA Maximum Standby Supply Current D Bidirectional Switch D Available in 8-pin SOIC and PDIP Packages D Ambient Temperature Range, 40°C to 85°C D 2-kV Human-Body-Model, 200-V.

TPS2041-etcTI.pdf

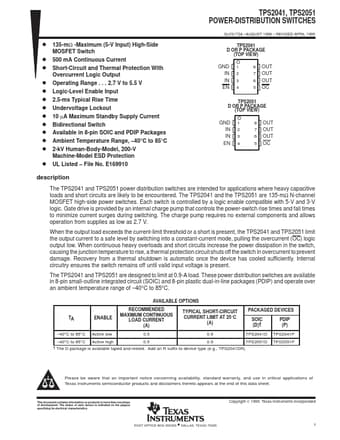

Preview of TPS2041 PDF
TPS2041 Datasheet Preview Page 2 TPS2041 Datasheet Preview Page 3

Datasheet Details

Part number:

TPS2041

Manufacturer:

Texas Instruments ↗

File Size:

564.50 KB

Description:

Power-distribution switches.
