TPS2052C

Power-Distribution Switches

TPS2052C Features

* 1 Dual Power Switch Family

* Rated Currents of 0.5 A, 1 A, 1.5 A, 2 A

* Accurate ±20% Current Limit Tolerance

* Fast Overcurrent Response

* 2 µs (Typical)

* 70-mΩ (Typical) High-Side N-Channel MOSFET

* Operating Range: 4.5 V to 5.5 V

TPS2052C General Description

The TPS20xxC and TPS20xxC-2 dual powerdistribution switch family is intended for applications such as USB where heavy capacitive loads and short-circuits may be encountered. This family offers multiple devices with fixed current-limit thresholds for applications between 0.5 A and 2 A. The TPS20xxC a.

TPS2052C Datasheet (3.57 MB)

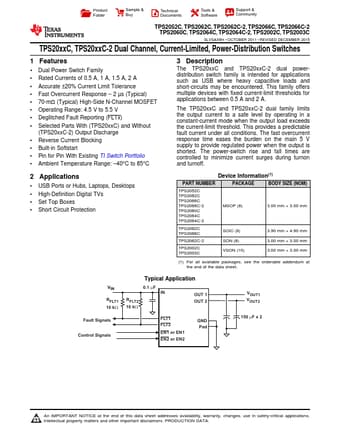

Preview of TPS2052C PDF

Datasheet Details

Part number:

TPS2052C

Manufacturer:

Texas Instruments ↗

File Size:

3.57 MB

Description:

Power-distribution switches.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS2052C, TPS2062C, TPS2062C-2, TPS2066C, TPS2066C-2 TPS2060.
