TPS2320 - DUAL HOT SWAP POWER CONTROLLERS

TPS2320 Description

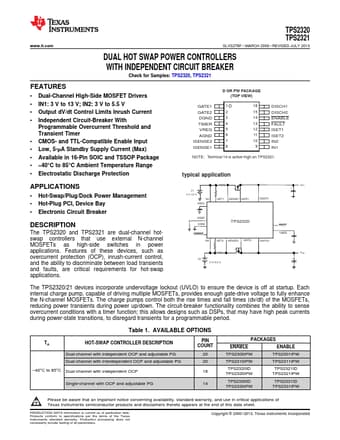

www.ti.com TPS2320 TPS2321 SLVS276F * MARCH 2000 * REVISED JULY 2013 DUAL HOT SWAP POWER CONTROLLERS WITH INDEPENDENT CIRCUIT BREAKER.
AGND DGND TPS2320 FAULT The TPS2320 and TPS2321 are dual-channel hot- ENABLE TIMER swap controllers that use external N-channel MOSFETs as high.

TPS2320 Features

* 1
* Dual-Channel High-Side MOSFET Drivers
* IN1: 3 V to 13 V; IN2: 3 V to 5.5 V
* Output dV/dt Control Limits Inrush Current
* Independent Circuit-Breaker With Programmable Overcurrent Threshold and Transient Timer
* CMOS- and TTL-Compatible Enable Input

TPS2320 Applications

* Hot-Swap/Plug/Dock Power Management
* Hot-Plug PCI, Device Bay V1 3 V
* 13 V IN1 VREG ISET1 ISENSE1 GATE1 DISCH1 VO1 +
