TPS23753

IEEE 802.3 PoE INTERFACE AND ISOLATED CONVERTER CONTROLLER

TPS23753 Features

* 1

* Optimized for Isolated Converters

* Complete PoE Interface

* Adapter ORing Support

* 12 V Adapter Support

* Programmable Frequency with Synch.

* Robust 100 V, 0.7 Ω Hotswap MOSFET

* Small TSSOP 14 Package

* 15 kV / 8 kV System Level

TPS23753 General Description

The TPS23753 is a combined Power over Ethernet (PoE) powered device (PD) interface and current-mode dc/dc controller optimized specifically for isolated converter designs. The PoE implementation supports the IEEE 802.3at standard as a 13 W, type 1 PD. The requirements for an IEEE 802.3at type 1 devi.

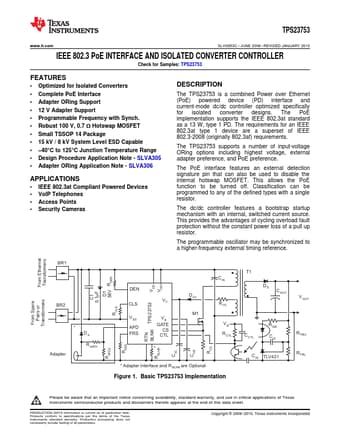

TPS23753 Datasheet (786.14 KB)

Preview of TPS23753 PDF

Datasheet Details

Part number:

TPS23753

Manufacturer:

Texas Instruments ↗

File Size:

786.14 KB

Description:

Ieee 802.3 poe interface and isolated converter controller.
TPS23753 www.ti.com SLVS853C

* JUNE 2008

* REVISED JANUARY 2010 IEEE 802.3 PoE INTERFACE AND ISOLATED CONVERTER CONTROLLER Check f.
