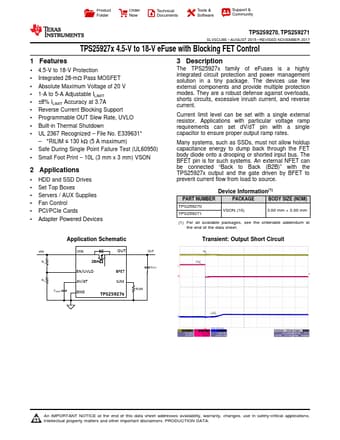

TPS259270 Datasheet Preview — Preview of TPS259270 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TPS259270
Manufacturer	Texas Instruments
File Size	2.12 MB
Description	eFuse Protection Switches
Datasheet	TPS259270-etcTI.pdf

TPS259270 Product details

Description

The TPS25927x family of eFuses is a highly integrated circuit protection and power management solution in a tiny package.

Features

1 4.5-V to 18-V Protection.
Integrated 28-mΩ Pass MOSFET.
Absolute Maximum Voltage of 20 V.
1-A to 5-A Adjustable ILIMIT.
±8% ILIMIT Accuracy at 3.7A.
Reverse Current Blocking Support.
Programmable OUT Slew Rate, UVLO.
Built-in Thermal Shutdown.
UL 2367 Recognized.
File No. E339631.
RILIM ≤ 130 kΩ (5 A maximum).
Safe During Single Point Failure Test (UL60950).
Small Foot.
