TPS2592AL, TPS2592AA 12-V eFuse

TPS2592AL Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS2592AA, TPS2592AL SLVSC11C * JUNE 2013 * .
The TPS2592Ax family of eFuses is a highly integrated circuit protection and power management solution in a tiny package.

TPS2592AL Features

* 1 VOPERATING = 4.5 V to 13.8 V, VABSMAX = 20 V
* Integrated 28-mΩ Pass MOSFET
* Fixed 15-V Over Voltage Clamp
* 2-A to 3.7-A Adjustable ILIMIT (±15% Accuracy)
* Reverse Current Blocking Support
* Programmable OUT Slew Rate, UVLO
* Built-in The

TPS2592AL Applications

* Adapter Powered Devices
* HDD and SSD Drives
* Set Top Boxes
* Servers / AUX Supplies
* Fan Control

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS2592AL, TPS2592AA. Please refer to the document for exact specifications by model.

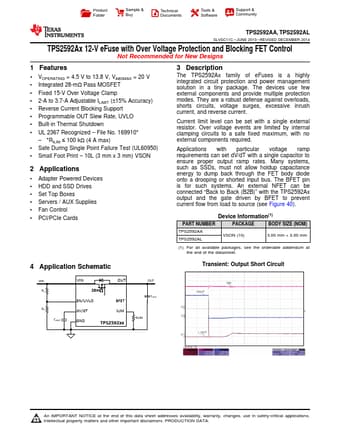

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS2592AL, TPS2592AA
Manufacturer
Texas Instruments ↗
File Size
2.53 MB
Datasheet
TPS2592AA-etcTI.pdf
Description
12-V eFuse
Note
This datasheet PDF includes multiple part numbers: TPS2592AL, TPS2592AA.
Please refer to the document for exact specifications by model.
