TPS51200 Datasheet, Regulator, Texas Instruments

TPS51200 Features

  • Regulator
  • 1 Input Voltage: Supports 2.5-V Rail and 3.3-V Rail
  • VLDOIN Voltage Range: 1.1 V to 3.5 V
  • Sink and Source Termination Regulator Includes Droop Compensation <

PDF File Details

Part number:

TPS51200

Manufacturer:

Texas Instruments ↗

File Size:

2.14MB

Download:

📄 Datasheet

Description:

Sink and source ddr termination regulator. The TPS51200 device is a sink and source double data rate (DDR) termination regulator specifically designed for low input voltage, lo

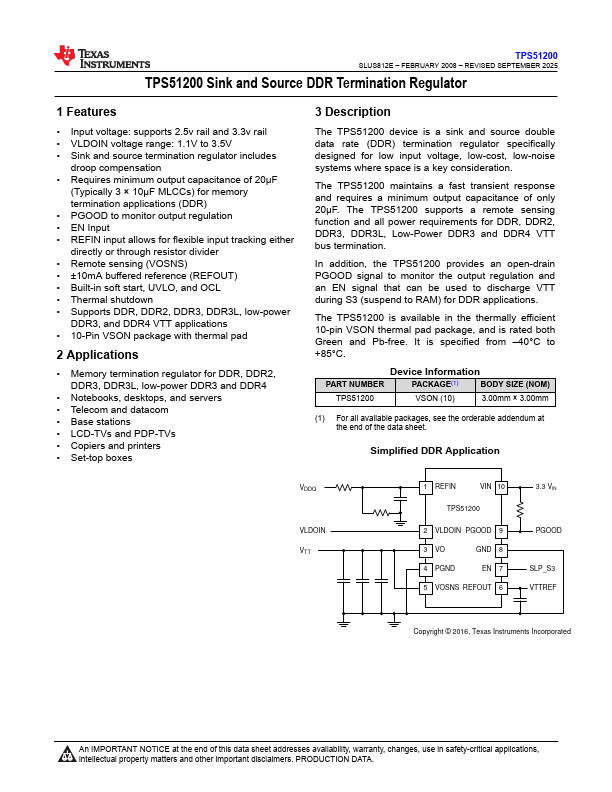

Datasheet Preview: TPS51200 📥 Download PDF (2.14MB)

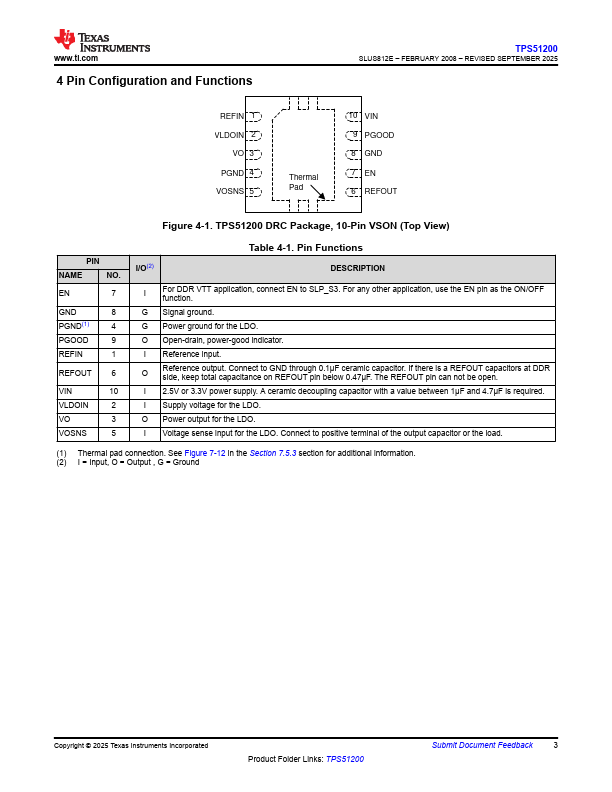

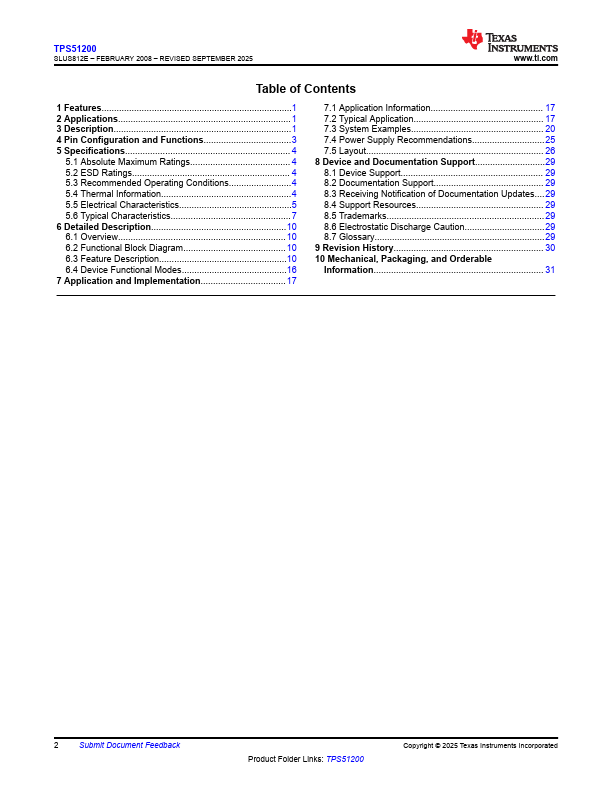

Page 2 of TPS51200 Page 3 of TPS51200

TPS51200 Application

  • Applications (DDR)
  • PGOOD to Monitor Output Regulation
  • EN Input
  • REFIN Input Allows for Flexible Input Tracking Either D
