TPS62870 Datasheet, Converters, Texas Instruments

TPS62870 Features

• Converters
• Functional Safety-Capable
    – Documentation available to aid functional safety system design
• 2.7V to 6V input voltage range
• 6A, 9A, 12A, and

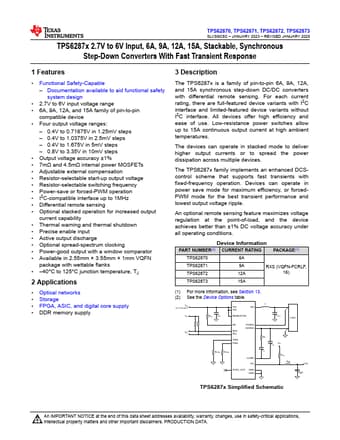

PDF File Details

Part number:

TPS62870

Manufacturer:

Texas Instruments ↗

File Size:

1.99MB

Download:

📄 Datasheet

Description:

Synchronous step-down converters. The TPS6287x is a family of pin-to-pin 6A, 9A, 12A, and 15A synchronous step-down DC/DC converters with differential remote sensing.

TPS62870 Application

• Applications
• Optical networks
• Storage
• FPGA, ASIC, and digital core supply
• DDR memory supply 3 Description
