TPS62871, TPS62870, Synchronous Step-Down Converters

TPS62870, TPS62871, TPS62872, TPS62873 SLVSGC5C * JANUARY 2023 * REVISED JANUARY 2025 TPS6287x 2.7V to 6V Input, 6A, 9A, 12A, 15A, Sta.
The TPS6287x is a family of pin-to-pin 6A, 9A, 12A, and 15A synchronous step-down DC/DC converters with differential remote sensing.

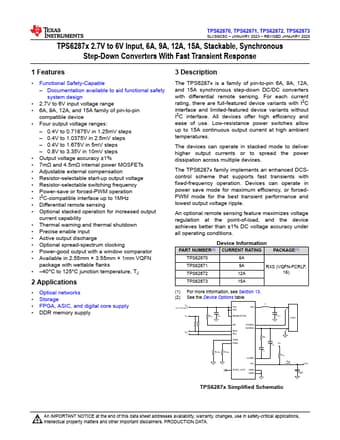

datasheet Preview Page 1 from Datasheet4u.com

TPS62870-etcTI.pdf

TPS62871 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS62871, TPS62870. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPS62871, TPS62870

Manufacturer:

Texas Instruments ↗

File Size:

1.99 MB

Description:

Synchronous Step-Down Converters

Note:

This datasheet PDF includes multiple part numbers: TPS62871, TPS62870.
Please refer to the document for exact specifications by model.

Features

* Functional Safety-Capable
* Documentation available to aid functional safety system design
* 2.7V to 6V input voltage range
* 6A, 9A, 12A, and 15A family of pin-to-pin compatible device
* Four output voltage ranges:
* 0.4V to 0.71875V in 1.25mV steps

Applications

* Optical networks
* Storage
* FPGA, ASIC, and digital core supply
