TRF371109

Direct Downconversion Receiver

TRF371109 Features

* 1

* 2 Frequency Range: 300 MHz to 1700 MHz

* Integrated Baseband Programmable Gain Amplifier

* On-Chip Programmable Baseband Filter

* High Cascaded IP3: 27 dBm at 900 MHz

* High IP2: 68 dBm at 900 MHz

* Hardware and Software Power Down

* Three-W

TRF371109 General Description

The TRF371109 is a highly linear direct-conversion quadrature receiver. The TRF371109 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable gain amplifiers allow adjustment of the output signal level without.

TRF371109 Datasheet (2.44 MB)

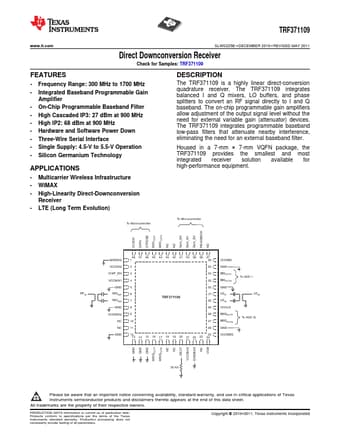

Preview of TRF371109 PDF

Datasheet Details

Part number:

TRF371109

Manufacturer:

Texas Instruments ↗

File Size:

2.44 MB

Description:

Direct downconversion receiver.
TRF371109 www.ti.com SLWS225B

* DECEMBER 2010

* REVISED MAY 2011 Direct Downconversion Receiver Check for Samples: TRF371109 FEATUR.
