TRF371135

INTEGRATED IQ DEMODULATOR

TRF371135 Features

* 1

* 2 Frequency Range: 1700 MHz to 6000 MHz

* Integrated Baseband Programmable-Gain Amplifier

* On-Chip Programmable Baseband Filter

* High Out-of-Band IP3: 22 dBm at 3550 MHz

* High Out-of-Band IP2: 52 dBm at 3550 MHz

* Hardware and Software Power Down

TRF371135 General Description

The TRF371135 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371135 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output si.

TRF371135 Datasheet (3.65 MB)

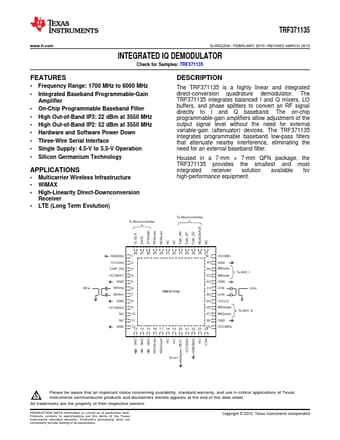

Preview of TRF371135 PDF

Datasheet Details

Part number:

TRF371135

Manufacturer:

Texas Instruments ↗

File Size:

3.65 MB

Description:

Integrated iq demodulator.
