TRF371125

INTEGRATED IQ DEMODULATOR

TRF371125 Features

* 1

* 2 Frequency Range: 700 MHz to 4000 MHz

* Integrated Baseband Programmable-Gain Amplifier

* On-Chip Programmable Baseband Filter

* High Out-of-Band IP3: 24 dBm at 2400 MHz

* High Out-of-Band IP2: 60 dBm at 2400 MHz

* Hardware and Software Power Down

TRF371125 General Description

The TRF371125 is a highly linear and integrated direct-conversion quadrature demodulator. The TRF371125 integrates balanced I and Q mixers, LO buffers, and phase splitters to convert an RF signal directly to I and Q baseband. The on-chip programmable-gain amplifiers allow adjustment of the output si.

TRF371125 Datasheet (2.93 MB)

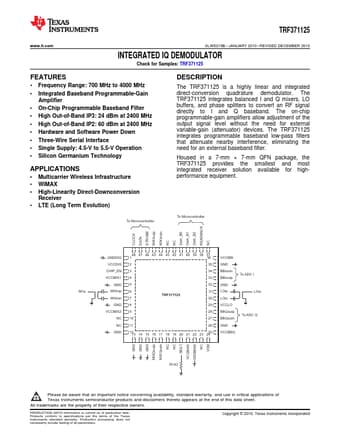

Preview of TRF371125 PDF

Datasheet Details

Part number:

TRF371125

Manufacturer:

Texas Instruments ↗

File Size:

2.93 MB

Description:

Integrated iq demodulator.
