TS12A44513

Low ON-State Resistance 4-Channel SPST CMOS Analog Switches

TS12A44513 Features

* 1 2-V to 12-V Single-Supply Operation

* Specified ON-State Resistance:

* 15-Ω Maximum With 12-V Supply

* 20-Ω Maximum With 5-V Supply

* 50-Ω Maximum With 3.3-V Supply

* ΔRON Matching

* 2.5-Ω (Max) at 12 V

* 3-Ω (Max) at 5 V

* 3

TS12A44513 General Description

The TS12A44513, TS12A44514, and TS12A44515 devices have four bidirectional single-pole singlethrow (SPST) single-supply CMOS analog switches. The TS12A44513 has two normally closed (NC) switches and two normally open (NO) switches, the TS12A44514 has four NO switches, and the TS12A44515 has four NC .

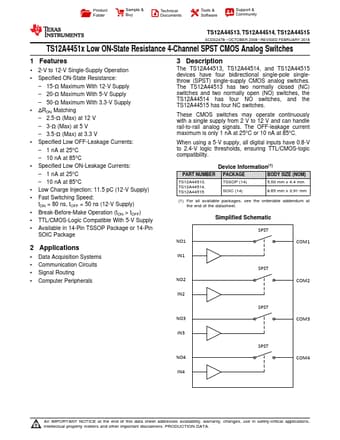

TS12A44513 Datasheet (544.05 KB)

Preview of TS12A44513 PDF

Datasheet Details

Part number:

TS12A44513

Manufacturer:

Texas Instruments ↗

File Size:

544.05 KB

Description:

Low on-state resistance 4-channel spst cmos analog switches.
