TS12A4517

LOW ON-STATE RESISTANCE SPST CMOS ANALOG SWITCHES

TS12A4517 Features

* 1

* ±1-V to ±6-V Dual-Supply Operation

* Specified ON-State Resistance:

* 25 Ω Max With ±5-V Supply

* 35 Ω Max With ±3.3-V Supply

* 47 Ω Max With ±1.8-V Supply

* Specified Low OFF-Leakage Currents:

* 5 nA at 25°C

* 10 nA at 85°C

TS12A4517 General Description

ORDERING INFORMATION The TS12A4516/TS12A4517 are single pole/single throw (SPST), low-voltage, dual-supply CMOS analog switches, with very low switch ON-state resistance. The TS12A4516 is normally open (NO). The TS12A4517 is normally closed (NC). These CMOS switches can operate continuously with a d.

TS12A4517 Datasheet (698.53 KB)

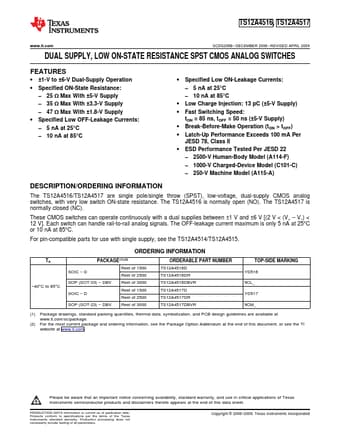

Preview of TS12A4517 PDF

Datasheet Details

Part number:

TS12A4517

Manufacturer:

Texas Instruments ↗

File Size:

698.53 KB

Description:

Low on-state resistance spst cmos analog switches.
TS12A4516, TS12A4517 www.ti.com SCDS236B

* DECEMBER 2006

* REVISED APRIL 2009 DUAL SUPPLY, LOW ON-STATE RESISTANCE SPST CMOS ANALOG .
