* 1
* ±1-V to ±6-V Dual-Supply Operation
* Specified ON-State Resistance:
* 25 Ω Max With ±5-V Supply
* 35 Ω Max With ±3.3-V Supply
* 47 Ω Max With ±1.8-V Supply
* Specified Low OFF-Leakage Currents:
* 5 nA at 25°C
* 10 nA at 85°C

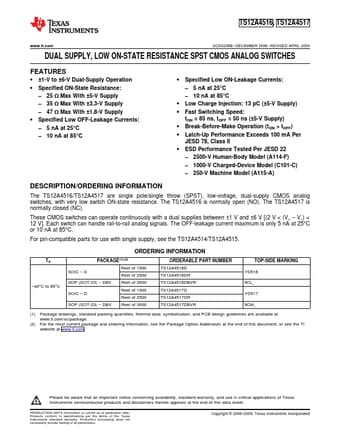

TS12A4516 Datasheet (698.53 KB)
TS12A4516
698.53 KB
Low on-state resistance spst cmos analog switches.
TS12A4516, TS12A4517
www.ti.com SCDS236B
* DECEMBER 2006
* REVISED APRIL 2009
DUAL SUPPLY, LOW ON-STATE RESISTANCE SPST CMOS ANALOG .
