TS12A4515

SPST CMOS ANALOG SWITCHES

TS12A4515 Features

* 1

* 2-V to 12-V Single-Supply Operation

* Specified ON-State Resistance:

* 15 Ω Max With 12-V Supply

* 20 Ω Max With 5-V Supply

* 50 Ω Max With 3.3-V Supply

* Specified Low OFF-Leakage Currents:

* 1 nA at 25°C

* 10 nA at 85°C

TS12A4515 General Description

ORDERING INFORMATION The TS12A4514/TS12A4515 are single pole/single throw (SPST), low-voltage, single-supply CMOS analog switches, with very low switch ON-state resistance. The TS12A4514 is normally open (NO). The TS12A4515 is normally closed (NC). These CMOS switches can operate continuously with a.

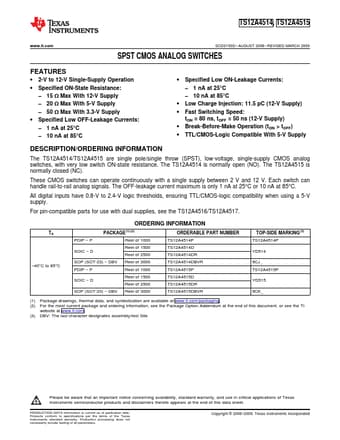

TS12A4515 Datasheet (735.24 KB)
