MIP252-10 Datasheet - euroclamp

MIP252-10 MIP25x-10 /16-IQ

MIP25x-10,16-IQ GENERAL INFORMATION pitch: housing height: housing depth: dimensional class: wire section: clamp opening size: wire stripping: operating temperature: 10,16 mm 12,50 mm 12.5 mm medium 2.5 mm² / 14 AWG 2.8 × 2.5 mm max 8 mm -40°C ÷ +130°C ELECTRICAL CHARACTERISTICS current: voltage: test voltage: 24A 750V 3 kVrms/60s MECHANICAL CHARACTERISTICS screw: M3 max. torque: 0.5 Nm / 4.5 in.lbs APPROVALS DATA current: voltage: wire section: torque: FILE: MATERIALS housing: screw:.

MIP252-10 Datasheet (1.22 MB)

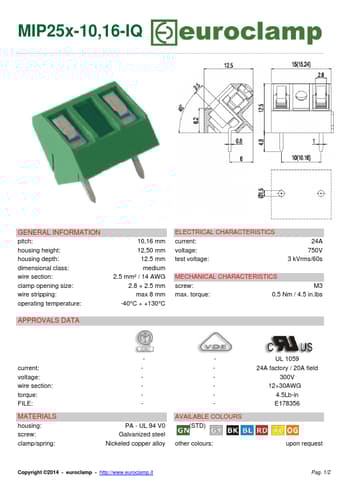

MIP252-10 Datasheet Preview — Preview of MIP252-10 PDF

Datasheet Details

Part number:

MIP252-10

Manufacturer:

euroclamp

File Size:

1.22 MB

Description:

Mip25x-10 /16-iq.
