ISL71610M Radiation Tolerant Passive-Input Digital Isolator

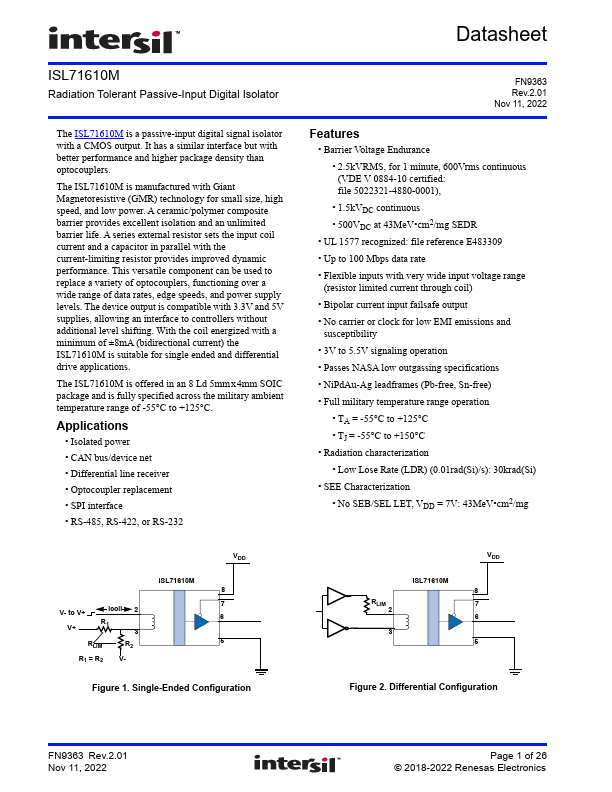

Datasheet ISL71610M Radiation Tolerant Passive-Input Digital Isolator The ISL71610M is a passive-input digital signal isolator with a CMOS output. It has a similar interface but with better performance and higher package density than optocouplers. The ISL71610M is manufactured with Giant Magnetoresistive (GMR) technology for small size, high speed, and low power. A ceramic/polymer composite barrier provides excellent isolation and an unlimited barrier life. A series external resistor sets the i.

ISL71610M Features

* Barrier Voltage Endurance

* 2.5kVRMS, for 1 minute, 600Vrms continuous (VDE V 0884-10 certified: file 5022321-4880-0001),

* 1.5kVDC continuous

* 500VDC at 43MeV

* cm2/mg SEDR

* UL 1577 recognized: file reference E483309

* Up to 100 Mbps data ra

ISL71610M Datasheet (884.18 KB)

ISL71610M Datasheet Preview — Preview of ISL71610M PDF

Datasheet Details

Part number:

ISL71610M

Manufacturer:

intersil

File Size:

884.18 KB

Description:

Radiation tolerant passive-input digital isolator.
