MSG20T65FQS Datasheet - maspower

MSG20T65FQS, MOSFET

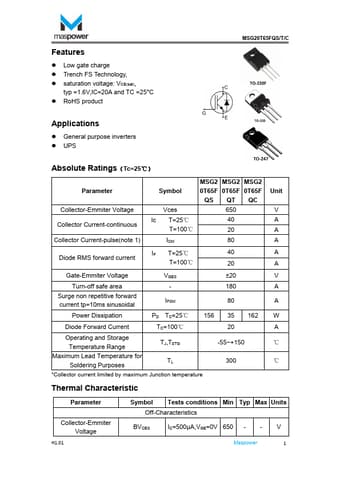

datasheet Preview Page 1 from Datasheet4u.com

MSG20T65FQS-maspower.pdf

MSG20T65FQS Datasheet Preview — Preview of MSG20T65FQS PDF

Datasheet Details

Part number:

MSG20T65FQS

Manufacturer:

maspower

File Size:

8.12 MB

Description:

MOSFET

Features

* Low gate charge
* Trench FS Technology,
* saturation voltage: VCE(sat), typ =1.6V,IC=20A and TC =25°C

Applications

* General purpose inverters
* UPS Absolute Ratings（Tc=25℃） Parameter Collector-Emmiter Voltage Collector Current-continuous Symbol MSG2 MSG2 MSG2 0T65F 0T65F 0T65F Unit QS QT QC Vces 650 V Ic T=25℃ 40 A T=100℃ 20 A Collector Current-pulse(note 1) ICM 80 A Diode RMS forward
