MSG40T120FH - High speed Trench Fieldstop IGBT

MSG40T120FH Datasheet Preview — Preview of MSG40T120FH PDF

Datasheet Details

Part number	MSG40T120FH
Manufacturer	maspower
File Size	3.01 MB
Description	High speed Trench Fieldstop IGBT
Datasheet	MSG40T120FH-maspower.pdf

MSG40T120FH Product details

Description

This IGBT is produced using advanced trench fieldstop IGBT technology, which provides low V CE(sat), high switching performance and excellent quality.

Features

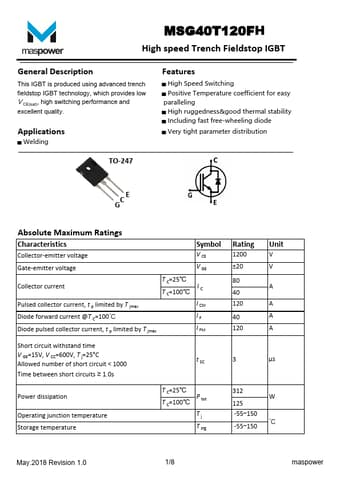

▄ High Speed Switching ▄ Positive Temperature coefficient for easy paralleling ▄ High ruggedness&good thermal stability ▄ Including fast free-wheeling diode ▄ Very tight parameter distribution GC E Absolute Maximum Ratings Characteristics Symbol Collector-emitter voltage V CE Gate-emitter voltage V GE Collector current T C=25℃ T C=100℃ I C Pulsed collector current, t p limited by T jmax I CM Diode forward current @T C=100℃ IF Diode pulsed collector current, t p limited by T jmax.
