MSG40T65FH Datasheet, Igbt, maspower

MSG40T65FH Features

  • Igbt
  • Fast Switching & Low VCE[sat]
  • High Input Impedance
  • VCE(sat) = 1.88V @ IC = 40A
  • High Input Impedance
  • Short circuit withstand time 10 µs

PDF File Details

Part number:

MSG40T65FH

Manufacturer:

maspower

File Size:

2.35MB

Download:

📄 Datasheet

Description:

Igbt.

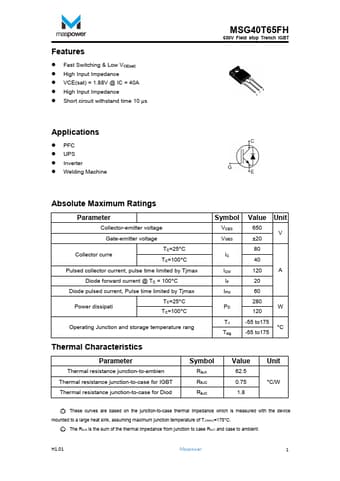

Datasheet Preview: MSG40T65FH 📥 Download PDF (2.35MB)
Page 2 of MSG40T65FH Page 3 of MSG40T65FH

MSG40T65FH Application

  • Applications
  • PFC
  • UPS
  • Inverter
  • Welding Machine Absolute Maximum Ratings Parameter Collector-emitter voltag
