LF222S

2W Single Output SMT DC/DC Converters

LF222S Features

* 2W Output Power

* Ultra-Miniature SMT Case

* 1,000 VDC Isolation

* 5V, 12 & 24V Inputs

* -40ºC to +85ºC Operation

* 6 Standard Models

* 2.0 MH MTBF Minimum

* Industry Standard Pin-Out Parameter Input Voltage Range Reverse Polarity I

LF222S General Description

-Vin +Vin No Pin -Vout +Vout No Pin No Pin NA NA = Not for electrical connection Notes:

* All dimensions are typical in inches (mm)

* Tolerance x.xx = ±0.01 (±0.25)

* Pin 1 is marked by a “dot” or indentation on the unit MicroPower Direct We Power Your Success - For Less! .

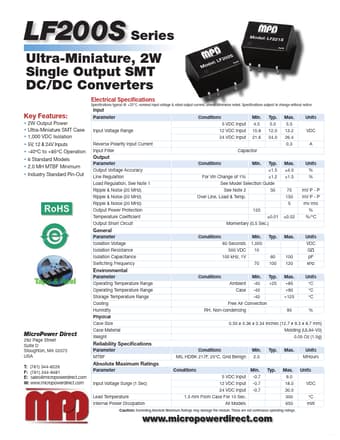

LF222S Datasheet (294.05 KB)
