LF2247 Datasheet, Ram, LOGIC Devices Incorporated

LF2247 Features

  • Ram u 66 MHz Data Input and Computation Rate u Four 11 x 10-bit Multipliers with Individual Data and Coefficient Inputs and a 25-bit Accumulator u Four 32 x 11-bit Serially Loadable Coeffic

PDF File Details

Part number:

LF2247

Manufacturer:

LOGIC Devices Incorporated

File Size:

259.94kb

Download:

📄 Datasheet

Description:

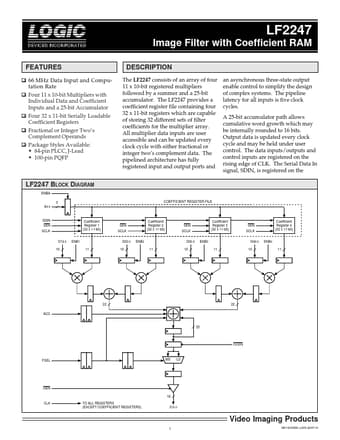

Image filter with coefficient ram. The LF2247 consists of an array of four 11 x 10-bit registered multipliers followed by a summer and a 25-bit accumulator. The LF2247

Datasheet Preview: LF2247 📥 Download PDF (259.94kb)
Page 2 of LF2247 Page 3 of LF2247

LF2247 Application

  • Applications The LF2247 can perform a bilinear interpolation of an image (4pixel kernels) at real-time video rates when used with an image resampli
