LF2272

Colorspace Converter/Corrector (3 x 12-bits)

LF2272 Features

* u 50 MHz Data and Computation Rate u Full Precision Internal Calculations with Output Rounding u On-board 10-bit Coefficient Storage u Overflow Capability in Low Resolution Applications u Two’s Complement Input and Output Data Format u 3 Simultaneous 12-bit Channels (64 Giga Colors) u Applications:

LF2272 General Description

The LF2272 is a high-speed digital colorspace converter/corrector consisting of three simultaneous 12-bit input and output channels for functionality up to 64 Giga (236) colors. Some of the applications the LF2272 can be used for include phosphor colorimetry correction, image capturing and manipulat.

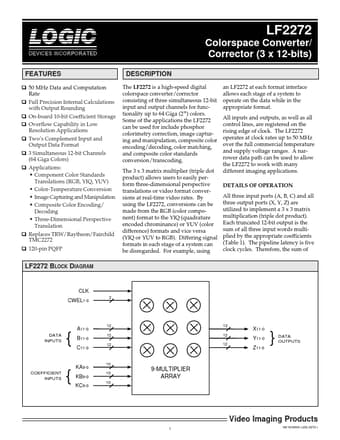

LF2272 Datasheet (249.65 KB)

Preview of LF2272 PDF

Datasheet Details

Part number:

LF2272

Manufacturer:

LOGIC Devices Incorporated

File Size:

249.65 KB

Description:

Colorspace converter/corrector (3 x 12-bits).
