NME1209SC

Isolated 1W Single Output DC-DC Converters

NME1209SC Features

* Short circuit protection options

* UL 60950 recognised

* Single isolated output

* 1kVDC isolation ‘Hi Pot Test’

* Wide temperature performance at full 1 watt load,

* 40°C to 85°C2

* Industry standard pinout

* 5V, 12V, 15V & 24V input

NME1209SC General Description

The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from

NME1209SC Datasheet (204.50 KB)

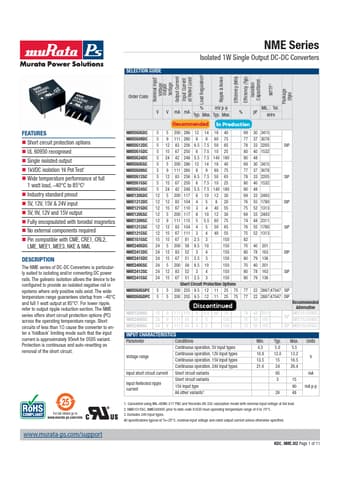

Preview of NME1209SC PDF

Datasheet Details

Part number:

NME1209SC

Manufacturer:

muRata

File Size:

204.50 KB

Description:

Isolated 1w single output dc-dc converters.
www.murata-ps.com SELECTION GUIDE NME Series Isolated 1W Single Output DC-DC Converters Nominal Input Voltage Output Voltage Output Current Input C.
