NME1215SC Isolated 1W Single Output DC-DC Converters

The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be conﬁgured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from

NME1215SC Features

* Short circuit protection options

* UL 60950 recognised

* Single isolated output

* 1kVDC isolation ‘Hi Pot Test’

* Wide temperature performance at full 1 watt load,

* 40°C to 85°C2

* Industry standard pinout

* 5V, 12V, 15V & 24V input

NME0505DC-muRata.pdf

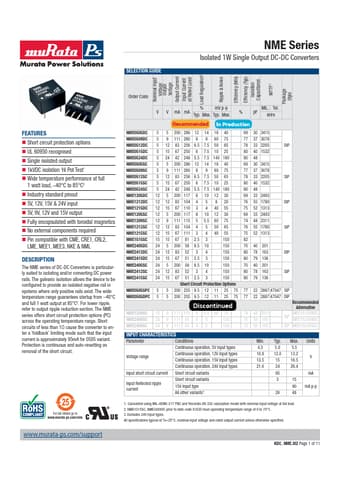

NME1215SC Datasheet Preview — This datasheet PDF includes multiple part numbers: NME1215SC, NME0505DC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NME1215SC, NME0505DC

Manufacturer:

muRata

File Size:

204.50 KB

Description:

Isolated 1w single output dc-dc converters.

Note:

This datasheet PDF includes multiple part numbers: NME1215SC, NME0505DC.
Please refer to the document for exact specifications by model.
