NME1212SC, NME0505DC Isolated 1W Single Output DC-DC Converters

NME1212SC Description

www.murata-ps.com SELECTION GUIDE NME Series Isolated 1W Single Output DC-DC Converters Nominal Input Voltage Output Voltage Output Current Input C.
The NME series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails.

NME1212SC Features

* Short circuit protection options
* UL 60950 recognised
* Single isolated output
* 1kVDC isolation ‘Hi Pot Test’
* Wide temperature performance at full 1 watt load,
* 40°C to 85°C2
* Industry standard pinout
* 5V, 12V, 15V & 24V input

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NME1212SC, NME0505DC. Please refer to the document for exact specifications by model.

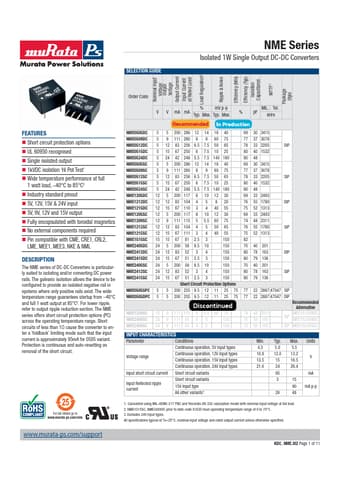

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NME1212SC, NME0505DC
Manufacturer
muRata
File Size
204.50 KB
Datasheet
NME0505DC-muRata.pdf
Description
Isolated 1W Single Output DC-DC Converters
Note
This datasheet PDF includes multiple part numbers: NME1212SC, NME0505DC.
Please refer to the document for exact specifications by model.
