LN1170 - High Ripple-Rejection High Output Current CMOS Voltage Regulator

The LN1170 by natlinear is a High Ripple-Rejection High Output Current CMOS Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LN1170 High Ripple-Rejection High Output Current CMOS Voltage Regulator by natlinear - Datasheet Preview — Official preview page of the **LN1170** High Ripple-Rejection High Output Current CMOS Voltage Regulator datasheet (natlinear).

Datasheet Details

Part number	LN1170
Manufacturer	natLinear
File Size	317.49 KB
Description	High Ripple-Rejection High Output Current CMOS Voltage Regulator
Datasheet	LN1170-natlinear.pdf

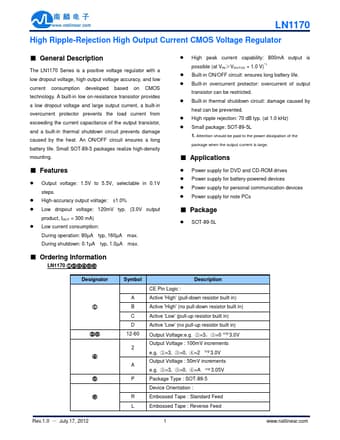

Additional preview pages of the LN1170 datasheet.

LN1170 Product details

Description

The LN1170 Series is a positive voltage regulator with a low dropout voltage, high output voltage accuracy, and low current consumption developed based on CMOS technology.

Features

s.
Output voltage: 1.5V to 5.5V, selectable in 0.1V steps.
High-accuracy output voltage: ±1.0%.
Low dropout voltage: 120mV typ. (3.0V output product, IOUT = 300 mA).
Low current consumption: During operation: 80µA typ, 160µA max. During shutdown: 0.1µA typ, 1.0µA max.
Ordering Information LN1170 ①②③④⑤⑥.
High peak current capability: 800mA output is possible (at VIN≥VOUT(S) + 1.0 V).
1.
Built-in ON/OFF circuit: ensures long battery life.
Built-in ove.
