LN2046 - Low-Voltage I/O Touch Panel Controller

Datasheet Summary

Description

The LN2046 touch panel controller IC is a 12-bit ADC converter with SPI serial interface and low on-resistance drivers for 4-wire resistive touch panels.

Features

  • r>.
  • Serial interface.
  • 4-wire touch panel interface.
  • Embedded touch panel drivers.
  • 2.7V to 5.5V supply volt.

📥 Download Datasheet

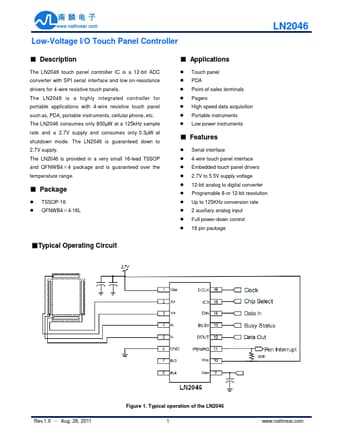

Datasheet preview – LN2046

Datasheet Details

Part number LN2046
Manufacturer natLinear
File Size 648.98 KB
Description Low-Voltage I/O Touch Panel Controller
Datasheet download datasheet LN2046 Datasheet
