LN2051 - 1A is compatible with the USB interface / linear battery management chip

Datasheet Summary

Description

The LN2051 is a constant- current / constant- voltage charger circuit for single cell lithium-ion batteries.

The device includes an internal power transistor, does not need external current sense resistor and blocking diode in applications.

Features

  • Programmable charge current up to 1A.
  • No MOSFET, sense resistor or blocking diode required.
  • Complete linear charger in small package for single cell lithium-ion batteries.
  • Constant-Current/Constant-Voltage operation with thermal regulation to maximize charge rate without risk of overheating.
  • Charges single cell li-Ion batteries directly from USB port.
  • Preset 4.2V charge voltage with 1% accuracy, also can be adjusted by FB.
  • Monitor output charge current.

📥 Download Datasheet

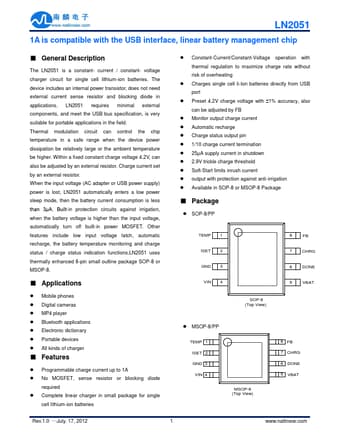

Datasheet preview – LN2051
