LN2012

Stereo 2.1W Non-Clip Audio Power Amplifiers

LN2012 Features

* Maximum output 2.1 W×2ch (VDDP=VDDA=5.0V, RL=4Ω, THD+N=1%) 0.75 W×2ch (VDDP=VDDA=3.6V, RL=8Ω, THD+N=10%)

* Distortion Rate (THD+N) 0.03 % (VDDP=VDDA=3.6V, RL=8 Ω, Po=0.4W, 1kHz)

* Efficiency 84 % (VDDP=VDDA=3.6V, RL=8Ω, Po==600mW)

* Channel separation 95dB (VDDP=VDDA=3.6V, RL=8Ω, A

LN2012 General Description

The LN2012 is a digital audio power amplifier IC with maximum output of 2.1W (RL=4Ω)×2ch, which directly drives speakers while reducing distortion of pulse output signal and reducing noise on the signal, and realizes the highest standard low distortion rate characteristics and low noise characterist.

LN2012 Datasheet (311.53 KB)

Preview of LN2012 PDF

Datasheet Details

Part number:

LN2012

Manufacturer:

natlinear

File Size:

311.53 KB

Description:

Stereo 2.1w non-clip audio power amplifiers.

📁 Related Datasheet

LN2011 Mono 1W Filterless Non-Clip class-D Audio Power Amplifier (natlinear)

LN2003 7 Segment Display (Sensitron)

LN2046 Low-Voltage I/O Touch Panel Controller (natlinear)

LN2051 1A is compatible with the USB interface / linear battery management chip (natlinear)

LN2052 1A Is Compatible With The USB Interface / Linear Battery Management Chip (natlinear)

LN2053 1A Is Compatible With The USB Interface / Linear Battery Management Chip (natlinear)

LN2054 Standalone Linear Li-Ion Battery Charger (Natlinear)

LN2065 Sensorless CC/CV Step-Down DC/DC Converter (natlinear)

LN2102 2A / 23V Step-Down LED Driver (natlinear)

LN2103 2A / 40V Step-Down LED Driver (natlinear)

TAGS

LN2012 Stereo 2.1W Non-Clip Audio Power Amplifiers natlinear

Image Gallery

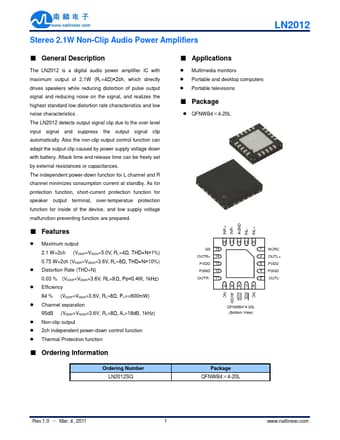

LN2012 Datasheet Preview Page 2 LN2012 Datasheet Preview Page 3
