1PS79SB70 - General-purpose Schottky diode

Description

General-purpose Schottky diode in an ultra small SOD523 (SC-79) Surface-Mounted Device (SMD) flat lead plastic package.

2.

Features

  • High switching speed.
  • Low leakage current.
  • High breakdown voltage.
  • Low capacitance 3.

📥 Download Datasheet

Datasheet preview – 1PS79SB70

Datasheet Details

Part number 1PS79SB70
Manufacturer nexperia
File Size 181.87 KB
Description General-purpose Schottky diode
Datasheet download datasheet 1PS79SB70 Datasheet
Additional preview pages of the 1PS79SB70 datasheet.

📁 Similar Datasheet

  • 1PS79SB70 - General-purpose Schottky diodes (NXP)
  • 1PS79SB10 - Schottky barrier single diode (NXP)
  • 1PS79SB17 - Schottky barrier diode (NXP)
  • 1PS79SB30 - Schottky barrier single diode (NXP)
  • 1PS79SB31 - Schottky barrier diode (NXP)
  • 1PS79SB40 - Schottky barrier diode (NXP)
  • 1PS79SB62 - Schottky barrier diode (NXP)
  • 1PS70SB10 - Schottky barrier single diode (NXP)
  • 1PS70SB14 - Dual Schottky barrier diode (NXP)
  • 1PS70SB15 - Dual Schottky barrier diode (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

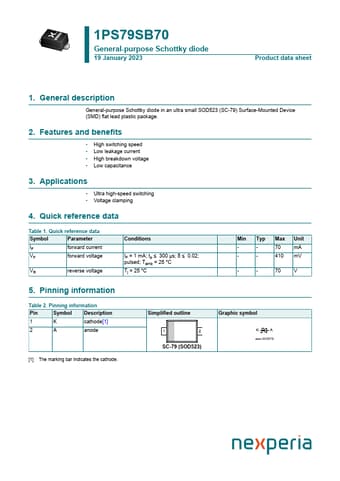

1PS79SB70 General-purpose Schottky diode 19 January 2023 Product data sheet 1. General description General-purpose Schottky diode in an ultra small SOD523 (SC-79) Surface-Mounted Device (SMD) flat lead plastic package. 2. Features and benefits • High switching speed • Low leakage current • High breakdown voltage • Low capacitance 3. Applications • Ultra high-speed switching • Voltage clamping 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF forward current VF forward voltage VR reverse voltage Conditions IF = 1 mA; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tamb = 25 °C Tj = 25 °C Min Typ Max Unit - - 70 mA - - 410 mV - - 70 V 5. Pinning information Table 2.
