74AHCT125, 74AHC125 - Quad buffer/line driver

nexperia

The 74AHCT125 by nexperia is a Quad buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

74AHCT125 Quad buffer/line driver by nexperia - Datasheet Preview — Official preview page of the 74AHCT125 Quad buffer/line driver datasheet (nexperia).

Datasheet Details

Part number	74AHCT125, 74AHC125
Manufacturer	nexperia
File Size	277.17 KB
Description	Quad buffer/line driver
Datasheet	74AHC125-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74AHCT125, 74AHC125. Please refer to the document for exact specifications by model.

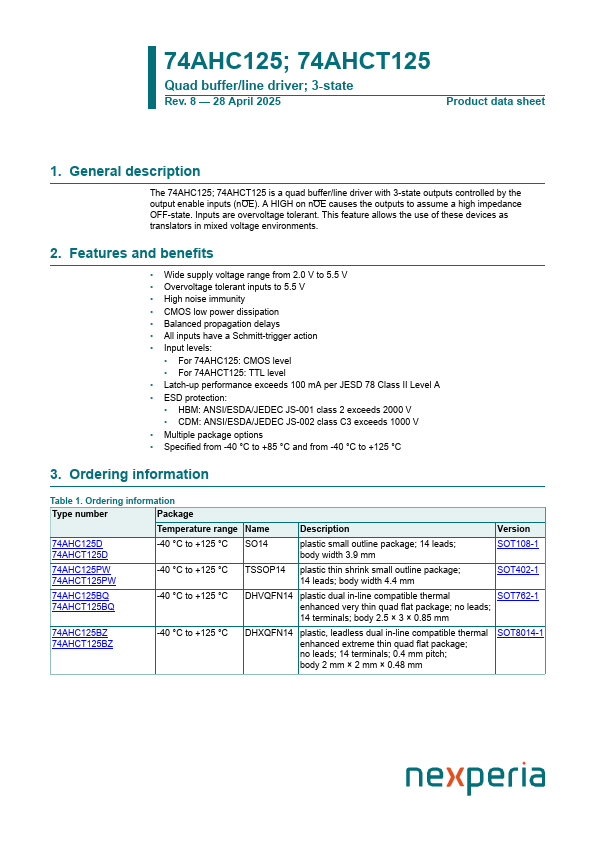

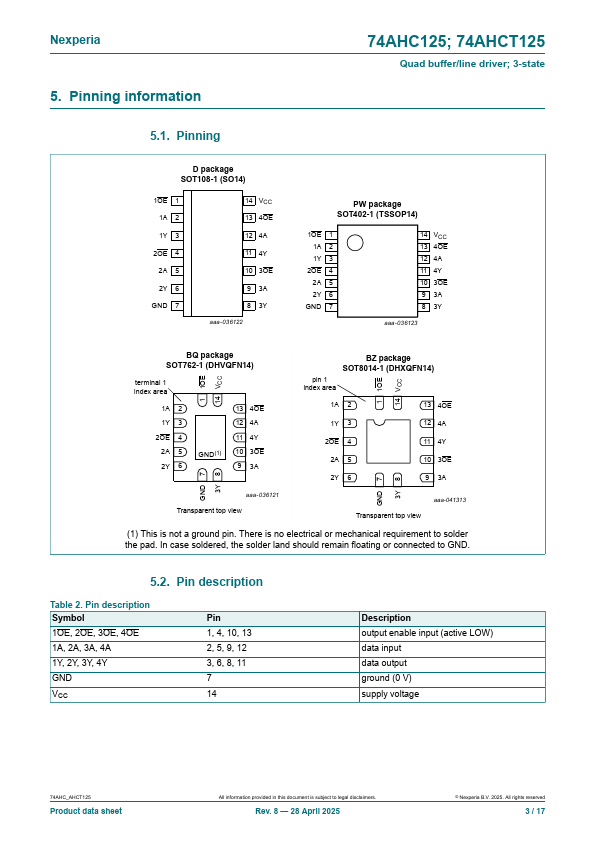

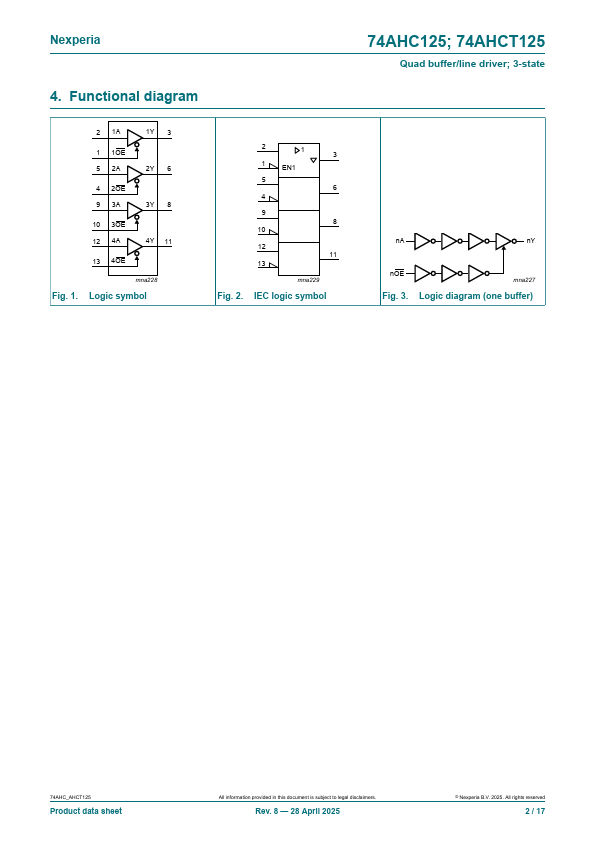

Additional preview pages of the 74AHCT125 datasheet.

74AHCT125 Product details

Description

The 74AHC125; 74AHCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

Features

Wide supply voltage range from 2.0 V to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
Balanced propagation delays.
All inputs have a Schmitt-trigger action.
Input levels:.
For 74AHC125: CMOS level.
For 74AHCT125: TTL level.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level A.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2.
