74HC2G02-Q100 - Dual 2-input NOR gate

Product Overview

nexperia

📥 Download Datasheet

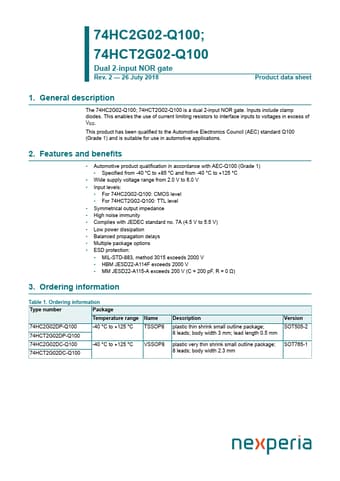

74HC2G02-Q100 Dual 2-input NOR gate by nexperia - Datasheet Preview — Datasheet preview – 74HC2G02-Q100

Datasheet Details

Part number	74HC2G02-Q100
Manufacturer	nexperia
File Size	204.26 KB
Description	Dual 2-input NOR gate
Datasheet	74HC2G02-Q100 Datasheet
Additional preview pages of the 74HC2G02-Q100 datasheet.

Product details

Description

The 74HC2G02-Q100; 74HCT2G02-Q100 is a dual 2-input NOR gate.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 V to 6.0 V.
Input levels:.
For 74HC2G02-Q100: CMOS level.
For 74HCT2G02-Q100: TTL level.
Symmetrical output impedance.
High noise immunity.
Complies with JEDEC standard no. 7A (4.5 V to 5.5 V).
Low power dissipation.
Balanced propaga.
