74HC2G08-Q100

Dual 2-input AND gate

74HC2G08-Q100 Datasheet (201.26 KB)

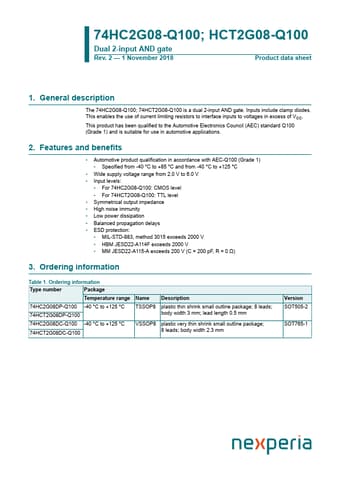

Preview of 74HC2G08-Q100 PDF

Datasheet Details

Part number:

74HC2G08-Q100

Manufacturer:

nexperia ↗

File Size:

201.26 KB

Description:

Dual 2-input and gate.

74HC2G08-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Wide supply voltage range from 2.0 V to 6.0 V

* Input levels:

* For 74HC2G08-Q100: CMOS level

* For 74HCT2G08-Q100:

74HC2G08-Q100 General Description

The 74HC2G08-Q100; 74HCT2G08-Q100 is a dual 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is s.
