74HCT157PW, 74HC157 - Quad 2-input multiplexer

nexperia

📥 Download Datasheet

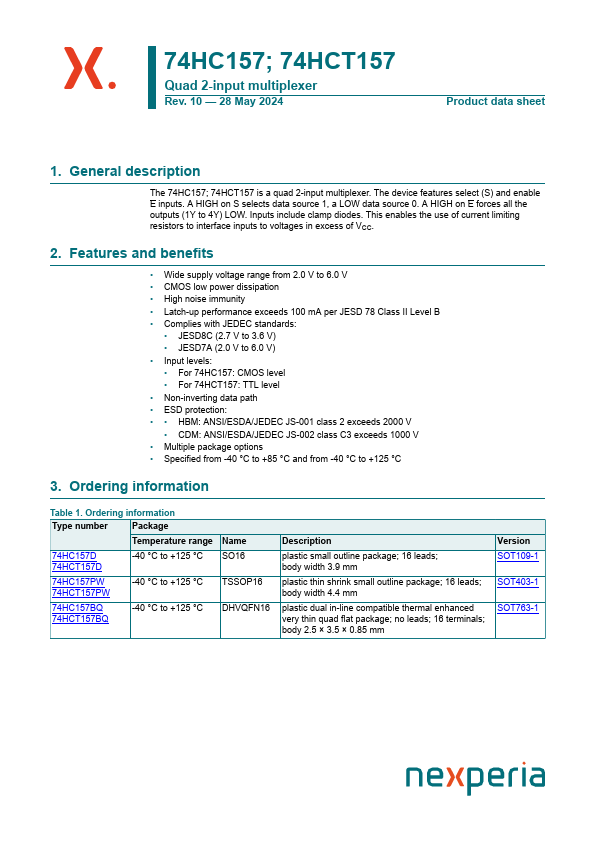

74HCT157PW Datasheet Preview — This datasheet PDF includes multiple part numbers: 74HCT157PW, 74HC157. Please refer to the document for exact specifications by model.

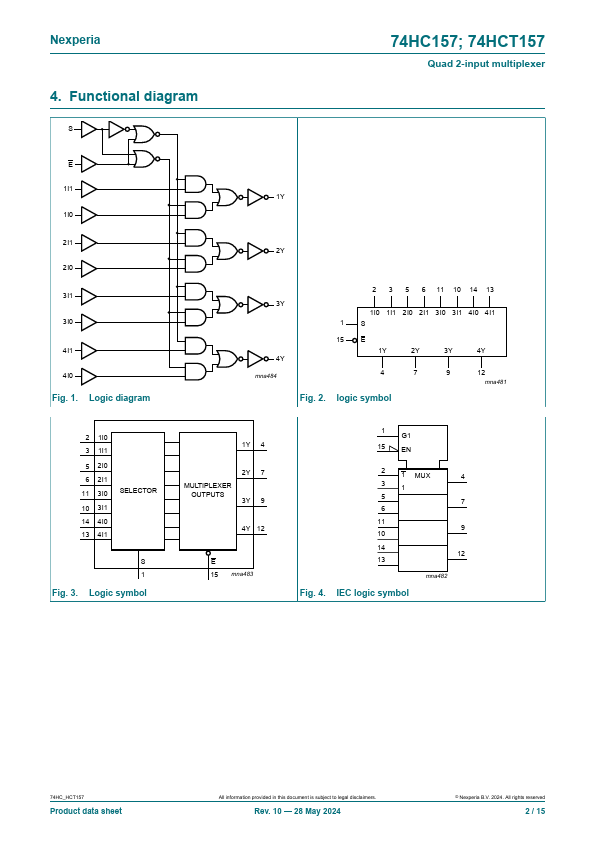

datasheet Preview Page 2

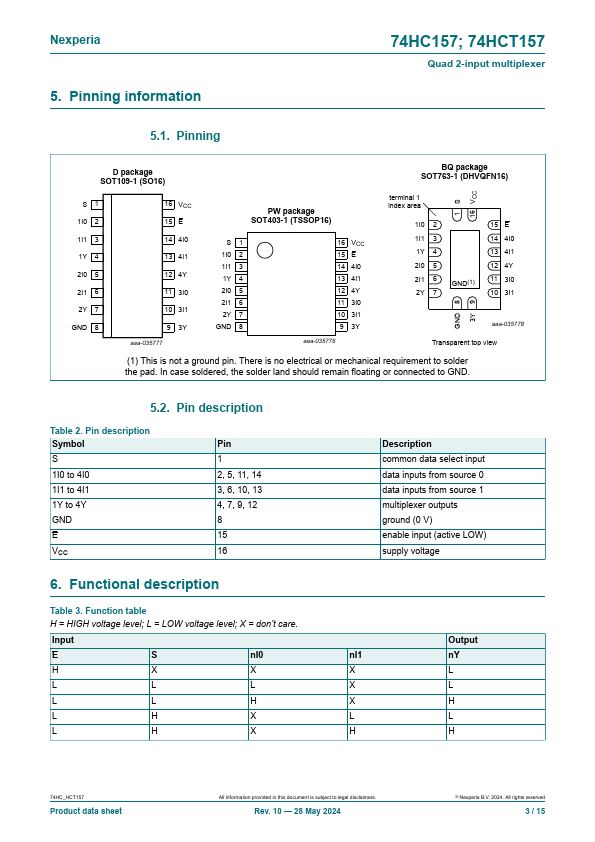

datasheet Preview Page 3

Datasheet Details

Part number	74HCT157PW, 74HC157
Manufacturer	nexperia ↗
File Size	269.12 KB
Description	Quad 2-input multiplexer
Datasheet	74HC157-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HCT157PW, 74HC157. Please refer to the document for exact specifications by model.

74HCT157PW Product details

Description

The 74HC157; 74HCT157 is a quad 2-input multiplexer.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC157: CMOS level.
For 74HCT157: TTL level.
Non-inverting data path.
ESD protection:.
HBM: ANSI/ESDA/JEDEC.
