74LVC02A-Q100

Quad 2-input NOR gate

74LVC02A-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* 5 V tolerant inputs for interfacing with 5 V logic

* Wide supply voltage range from 1.2 V to 3.6 V

* CMOS low power consumpt

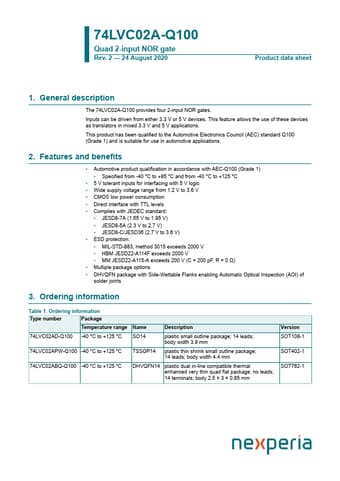

74LVC02A-Q100 Datasheet (224.07 KB)

Preview of 74LVC02A-Q100 PDF

Datasheet Details

Part number:

74LVC02A-Q100

Manufacturer:

nexperia ↗

File Size:

224.07 KB

Description:

Quad 2-input nor gate.
