74LVC1G38-Q100 - 2-input NAND gate

Product Overview

nexperia

📥 Download Datasheet

74LVC1G38-Q100 2-input NAND gate by nexperia - Datasheet Preview — Datasheet preview – 74LVC1G38-Q100

Datasheet Details

Part number	74LVC1G38-Q100
Manufacturer	nexperia
File Size	209.09 KB
Description	2-input NAND gate
Datasheet	74LVC1G38-Q100 Datasheet

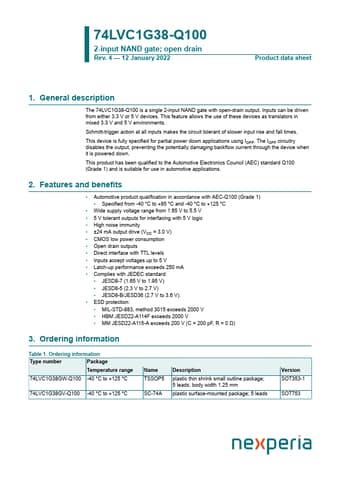

Additional preview pages of the 74LVC1G38-Q100 datasheet.

Product details

Description

The 74LVC1G38-Q100 is a single 2-input NAND gate with open-drain output.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and -40 °C to +125 °C.
Wide supply voltage range from 1.65 V to 5.5 V.
5 V tolerant outputs for interfacing with 5 V logic.
High noise immunity.
±24 mA output drive (VCC = 3.0 V).
CMOS low power consumption.
Open drain outputs.
Direct interface with TTL levels.
Inputs accept voltages up to 5 V.
