74LVC1G32 Datasheet, Gate, Diodes

74LVC1G32 Features

  • Gate
  • Wide Supply Voltage Range from 1.65 to 5.5V
  • ± 24mA Output Drive at 3.3V
  • CMOS Low Power Consumption
  • IOFF Supports Partial-Power-Down Mode Operatio

PDF File Details

Part number:

74LVC1G32

Manufacturer:

DIODES ↗

File Size:

633.35kb

Download:

📄 Datasheet

Description:

Single 2 input positive or gate. The 74LVC1G32 is a single 2-input positive OR gate with a standard push-pull output. The device is designed for operation with a powe

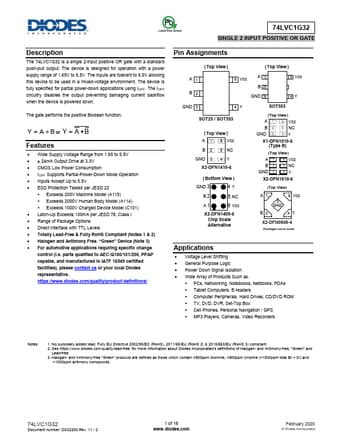

Datasheet Preview: 74LVC1G32 📥 Download PDF (633.35kb)
Page 2 of 74LVC1G32 Page 3 of 74LVC1G32

74LVC1G32 Application

  • Applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate perfo
