www.DataSheet4U.com 74LVC1G332 Single 3-input OR gate Rev.01 * 11 October 2006 Product data sheet 1.General .
The 74LVC1G332 is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families.

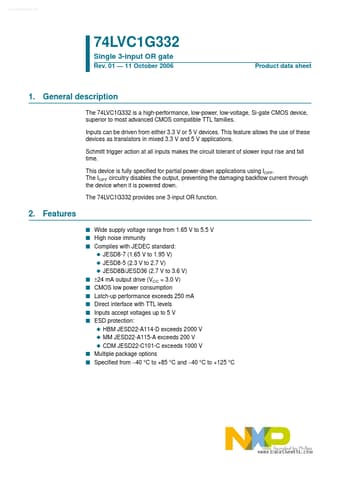

datasheet Preview Page 1 from Datasheet4u.com

74LVC1G332_PhilipsSemiconductors.pdf

74LVC1G332 Datasheet Preview — Preview of 74LVC1G332 PDF

Datasheet Details

Part number:

74LVC1G332

Manufacturer:

NXP ↗

File Size:

123.89 KB

Description:

Single 3-Input OR Gate

Features

* I Wide supply voltage range from 1.65 V to 5.5 V I High noise immunity I Complies with JEDEC standard: N JESD8-7 (1.65 V to 1.95 V) N JESD8-5 (2.3 V to 2.7 V) N JESD8B/JESD36 (2.7 V to 3.6 V) I ±24 mA output drive (VCC = 3.0 V) I CMOS low power consumption I Latch-up performance exceeds 250 mA I Dir

Applications

* Schmitt trigger action at all inputs makes the circuit tolerant of slower input rise and fall time. This device is fully speciﬁed for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backﬂow current through the device when it is powered dow
