74LVC1G57-Q100

Low-power configurable multiple function gate

74LVC1G57-Q100 Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)

* Specified from -40 °C to +85 °C and from -40 °C to +125 °C

* Wide supply voltage range from 1.65 V to 5.5 V

* Overvoltage tolerant inputs to 5.5 V

* High noise immunity

* ±24 mA

74LVC1G57-Q100 General Description

The 74LVC1G57-Q100 is a configurable multiple function gate with Schmitt-trigger inputs. The device can be configured as any of the following logic functions AND, OR, NAND, NOR, XNOR, inverter and buffer; using the 3-bit input. All inputs can be connected directly to VCC or GND. Inputs can be driven.

74LVC1G57-Q100 Datasheet (233.13 KB)

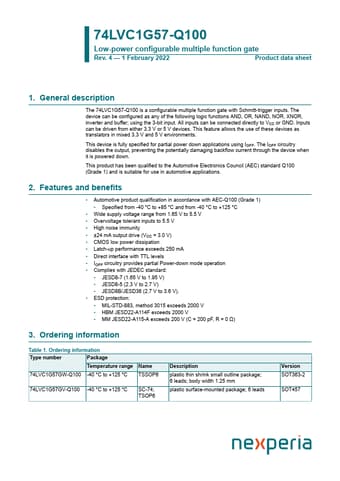

Preview of 74LVC1G57-Q100 PDF

Datasheet Details

Part number:

74LVC1G57-Q100

Manufacturer:

nexperia ↗

File Size:

233.13 KB

Description:

Low-power configurable multiple function gate.
