74LVC1G02-Q100 - Single 2-input NOR gate

Product Overview

nexperia

📥 Download Datasheet

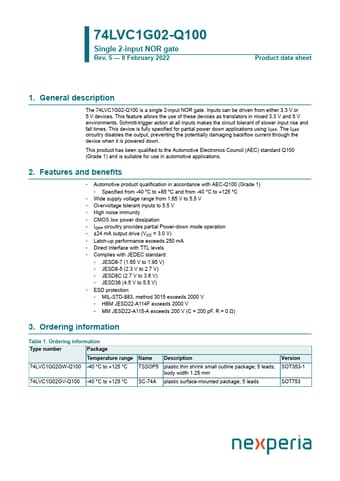

74LVC1G02-Q100 Single 2-input NOR gate by nexperia - Datasheet Preview — Datasheet preview – 74LVC1G02-Q100

Datasheet Details

Part number	74LVC1G02-Q100
Manufacturer	nexperia
File Size	203.42 KB
Description	Single 2-input NOR gate
Datasheet	74LVC1G02-Q100 Datasheet
Additional preview pages of the 74LVC1G02-Q100 datasheet.

Product details

Description

The 74LVC1G02-Q100 is a single 2-input NOR gate.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 1.65 V to 5.5 V.
Overvoltage tolerant inputs to 5.5 V.
High noise immunity.
CMOS low power dissipation.
IOFF circuitry provides partial Power-down mode operation.
±24 mA output drive (VCC = 3.0 V).
Latch-up performance exceeds 250 mA.
Direct inte.
