74LVC1G06-Q100 Inverter by nexperia - Datasheet Preview — Datasheet preview – 74LVC1G06-Q100

Datasheet Details

Part number	74LVC1G06-Q100
Manufacturer	nexperia
File Size	203.53 KB
Description	Inverter
Datasheet	74LVC1G06-Q100 Datasheet

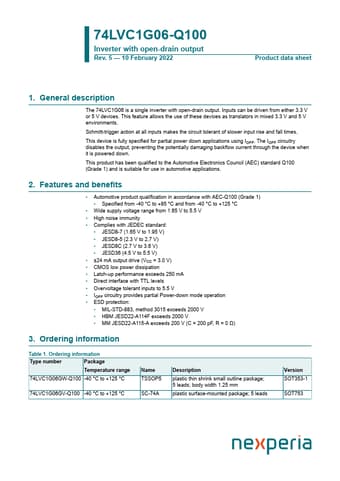

Additional preview pages of the 74LVC1G06-Q100 datasheet.

Product details

Description

The 74LVC1G06 is a single inverter with open-drain output.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 1.65 V to 5.5 V.
High noise immunity.
Complies with JEDEC standard:.
JESD8-7 (1.65 V to 1.95 V).
JESD8-5 (2.3 V to 2.7 V).
JESD8C (2.7 V to 3.6 V).
JESD36 (4.5 V to 5.5 V).
±24 mA output drive (VCC = 3.0 V).
CMOS low power dissipation.
