74LVC32A Datasheet, Gate, nexperia

74LVC32A Features

• Gate
• Wide supply voltage range from 1.2 V to 3.6 V
• Overvoltage tolerant inputs to 5.5 V
• CMOS low power dissipation
• Direct interface with TTL levels

PDF File Details

Part number:

74LVC32A

Manufacturer:

nexperia ↗

File Size:

231.31kb

Download:

📄 Datasheet

Description:

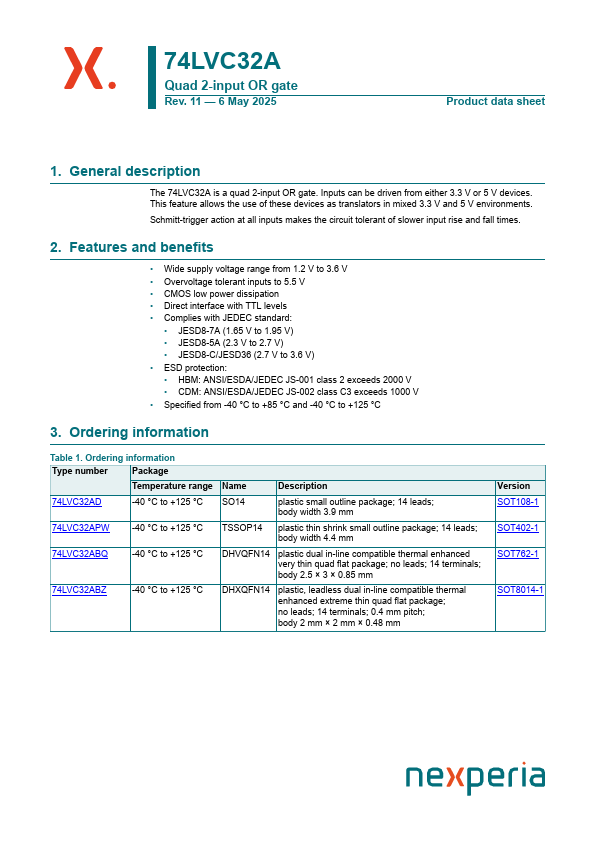

Quad 2-input or gate. The 74LVC32A is a quad 2-input OR gate. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these d
